Vertical Ladle Preheater Manufacturer in India

Therm process Engineering Pvt. Ltd. manufactures vertical ladle preheaters for drying and preheating ladle refractory before it receives molten metal. In a vertical preheater, the ladle stands upright and a burner fires down into it through a cover. This heats the refractory lining from the inside. Preheating reduces thermal shock to the lining, cuts the heat that molten metal loses to a cold ladle, and helps extend refractory life. Therm process builds the preheater around its own burners and combustion equipment. Share your ladle capacity and fuel for a proposal.

Why Preheat a Ladle?

A ladle carries molten metal from the furnace to the next process, such as secondary refining, casting or the caster. Its refractory lining is a large thermal mass. If molten metal is tapped into a cold or poorly heated ladle:

• The metal loses temperature to the lining, which may force higher tapping temperatures upstream and cost energy.
• The refractory suffers thermal shock, which can crack and spall the lining and shorten its life.
• Newly relined ladles also need controlled drying to remove moisture from fresh refractory before first use.

A ladle preheater solves these problems by heating the lining to a target temperature before tapping.

What Is a Vertical Ladle Preheater?

In a vertical ladle preheater, the ladle stands upright on the floor or a stand. A cover or hood carrying the burner is positioned over the ladle mouth, and the flame fires down into the ladle. Hot gases circulate around the lining and exit around the cover.

The alternative, a horizontal preheater, fires into a ladle lying on its side. The vertical arrangement is common where ladles are set down upright in the shop between heats.

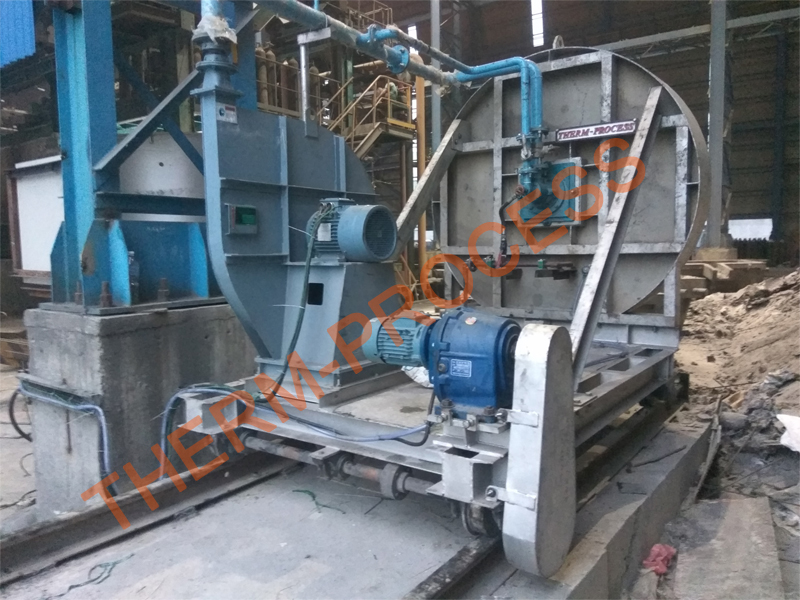

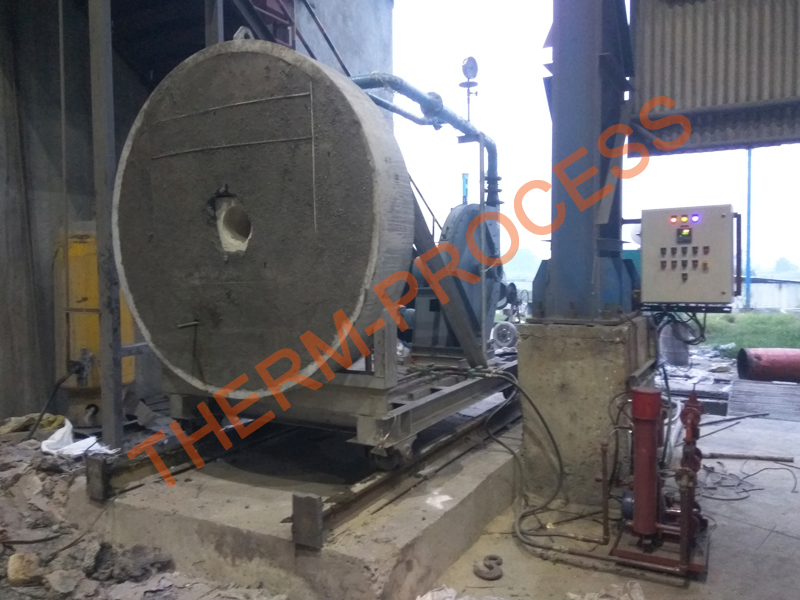

Therm process Vertical Ladle Preheater

Therm process supplies vertical ladle preheaters with its in-house combustion equipment:

• Burners from the Therm process range: gas (LPG, CNG, PRG, CBM, Bio-CNG), oil (LDO, FO, HSD, LSHS) or dual fuel, selected to suit the plant's fuel.
• Combustion blower sized for the burner.
• Flow and ratio control with Therm process valves and regulators.

The preheater is sized around the customer's ladle capacity and preheating schedule.

Technical Specifications

Key Features

• Vertical, top-firing arrangement.
• In-house burner and combustion system.
• Multi-fuel options.
• Sized to ladle capacity.
• Suitable for drying new linings and routine preheating.

Applications

• Preheating steel ladles before tapping.
• Drying and curing newly relined ladles.
• Keeping standby ladles hot between heats.

Industries Served

• Steel melt shops (EAF / induction furnace / ladle refining)
• Integrated and secondary steel plants
• Foundries (to be confirmed with client)

Benefits

• Lower thermal shock to ladle refractory.
• Longer lining life.
• Reduced metal temperature loss after tapping.
• Controlled drying of new linings.

Why Choose Thermprocess?

• Since 1997, Mumbai.
• Burner manufacturer as well as equipment builder.
• Steel melt shop range: delta pre heater, porous plug cleaning system, ladle preheater.
• ISO 9001 & ISO 14001 certified, as stated by the company.
