Therm process Engineering Pvt. Ltd. designs, manufactures and commissions bogie hearth furnaces for heat treatment of large, heavy components. A bogie hearth furnace has a movable hearth, the bogie or car, that rolls out of the furnace on rails. It can then be loaded by overhead crane and rolled back into the chamber for treatment. Therm process has commissioned bogie furnaces with capacities from 1 ton per batch up to 60 tons per batch. They suit forgings, castings and heavy fabrications. Share your load size, weight and heat treatment cycle for a furnace proposal

What Is a Bogie Hearth Furnace?

A bogie hearth furnace, also called a car bottom furnace, is a batch furnace for loads too large or heavy for a conventional box furnace. Its hearth is built on a wheeled bogie that runs on rails. The bogie moves out of the furnace to be loaded outside by crane, then travels back into the chamber. The door is closed and sealed, and the heat treatment cycle begins.

This solves a basic handling problem. Loading heavy forgings, castings or welded structures through a furnace door with a forklift or manipulator is slow and risky. The size of those machines also limits what can be loaded. With a bogie hearth, the crane loads directly from above, onto a platform with open access on all sides.

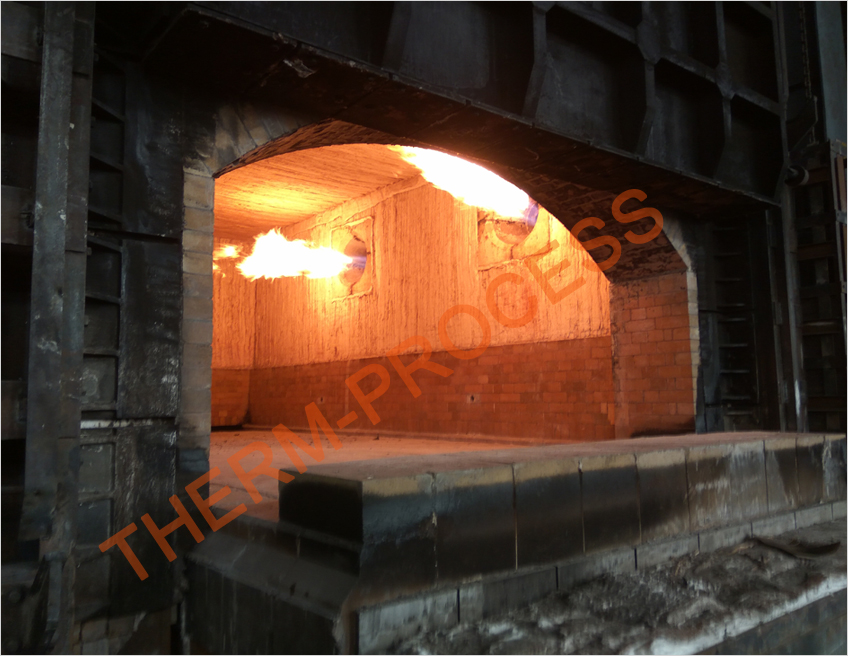

Inside the chamber, burners or heating elements heat the load at a controlled rate, hold it at temperature and, depending on the process, control the cooling. For large, thick components, ramp rates and temperature uniformity are critical. Heating a heavy section too fast creates stresses, and cold spots leave parts of the load untreated.

Therm process Bogie Hearth Furnaces

Therm process is a project engineering company that designs, manufactures and supplies bogie hearth furnaces for various heat treatment processes. Its commissioned bogie furnaces range from 1 ton per batch to 60 tons per batch.

Each bogie hearth furnace is engineered around the customer’s heaviest and largest loads. This covers bogie size and load rating, chamber height, and the heating and control system needed to follow the specified cycle.

For fuel-fired designs, Therm process supplies its own combustion system. This includes gas, oil or dual-fuel burners, combustion blowers, fuel trains and ratio controls. Recuperators for waste heat recovery can be incorporated.

Therm process also offers furnace profiling. Thermocouples are attached directly to the charge to record the temperature it actually reaches during the cycle. This is useful when customers or inspectors require documented heat treatment of heavy sections.

Microprocessor-based process controls can be specified to run the heating, soaking and cooling cycle and record it.

Technical Specifications

Parameter Specification
Furnace Type Batch type bogie hearth (car bottom) furnace
Capacity 1 ton to 60 tons per batch (commissioned range)
Loading Bogie withdrawn on rails; crane loading
Charge Forgings, castings, heavy fabrications and weldments
Operating Temperature Available as per heat treatment process
Heating Method Fuel fired / electric, as per application
Fuel Gas / oil / dual fuel, as per site availability
Chamber Size Designed as per maximum load dimensions
Bogie Drive As per bogie size and load
Temperature Control Microprocessor-based, as per application
Heat Recovery Recuperator, as per design
Charge Temperature Verification Furnace profiling (thermocouples on charge) available
Customization Bogie size, chamber, door, firing and controls as per requirement

Key Features

  • Crane loading outside the furnace The bogie rolls out, so heavy loads are placed safely from above.
  • Wide capacity range From 1 ton to 60 tons per batch.
  • Load-specific chamber design Sized around the customer’s largest components.
  • In-house combustion system Burners, blowers and fuel controls from Therm process.
  • Controlled heating and cooling cycles Programmable ramp and soak for thick sections.
  • Furnace profiling Measure the actual charge temperature, not just the furnace setpoint.
  • Heat recovery option Recuperators to use flue-gas heat.

How a Bogie Hearth Furnace Works

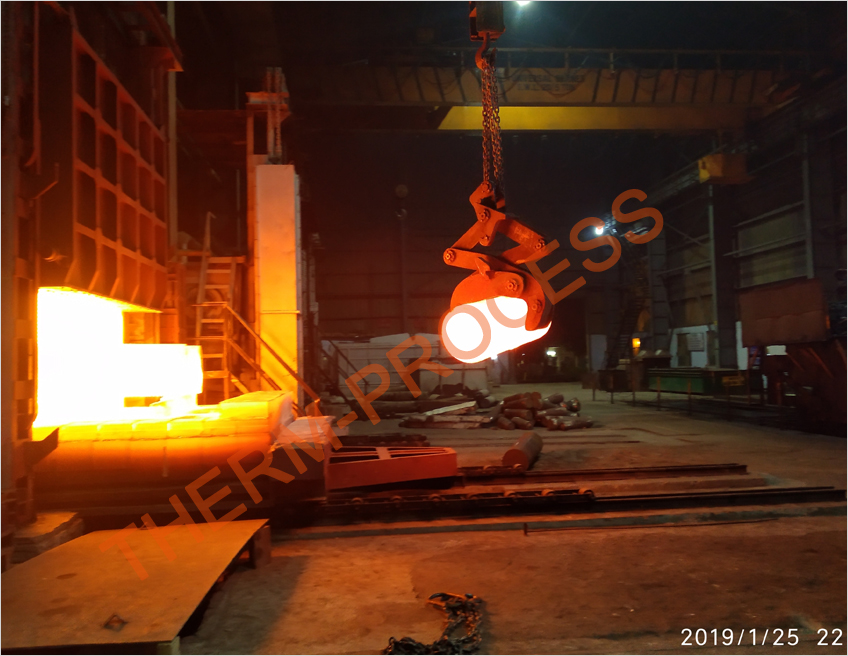

  • Bogie out The bogie travels out of the furnace on rails to the loading bay.
  • Loading Components are placed on the bogie by overhead crane, on supports or fixtures, with spacing for heat circulation.

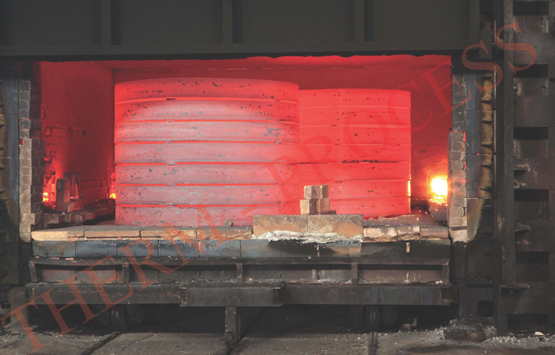

  • Bogie in and sealing The bogie returns into the chamber. The door closes, and seals between the bogie, door and walls limit heat loss.
  • Controlled heating Burners or elements raise the load temperature at the programmed rate, which is important for thick sections.
  • Soaking The load is held at temperature until the entire section reaches it.
  • Controlled cooling Depending on the process, the load cools in the furnace at a controlled rate, or is withdrawn for air cooling or quenching.
  • Unloading and records The bogie rolls out, components are unloaded, and cycle records are kept for quality documentation.

Applications of Bogie Hearth Furnaces

  • Stress relieving of fabrications Reducing residual welding stresses in pressure vessels, structures and heavy weldments.
  • Annealing Softening large forgings and castings to improve machinability.
  • Normalizing Refining grain structure in forgings and castings after hot working.
  • Hardening and tempering Heat treating large components to required mechanical properties, with quenching arranged outside the furnace.
  • Preheating for forging Heating heavy ingots or blooms where crane handling is needed.

Industries Using Bogie Hearth Furnaces

  • Heavy engineering and fabrication Stress relieving welded structures and machine frames.
  • Forging industry Annealing, normalizing and tempering of large forgings.
  • Foundries Heat treatment of heavy steel castings.
  • Steel plants Treatment of rolls, heavy sections and plant components.
  • Pressure vessel and equipment manufacturing Post-weld heat treatment.

Benefits of a Therm process Bogie Hearth Furnace

  • Safer handling of heavy loads Crane loading outside the furnace replaces awkward door loading.
  • Large batch capacity Handles single heavy parts or grouped loads.
  • Consistent metallurgical results From controlled ramp, soak and cooling.
  • Documented heat treatment Through process records and furnace profiling.
  • Fuel efficiency Matched burners and optional heat recovery.
  • Flexible use One furnace can run several heat treatment cycles.

Custom Bogie Hearth Furnace Solutions

Therm process sizes each bogie hearth furnace around:

  • Maximum load weight per batch
  • Largest component dimensions (length, width, height)
  • Material and grade
  • Heat treatment processes required
  • Maximum operating temperature
  • Heating and cooling rates
  • Temperature uniformity requirement
  • Fuel or electric heating
  • Door type and bogie drive
  • Crane capacity and loading bay layout
  • Controls, recording and profiling requirements
  • Available floor space

Why Choose Therm process?

  • Established 1997. Mumbai-based project engineering company for industrial furnaces and burners.
  • Commissioned bogie furnaces from 1 to 60 tons per batch.
  • In-house design of furnaces, burners and recuperators.
  • Furnace profiling services to verify the temperature the charge actually reaches.
  • ISO 9001 & ISO 14001 certified, as stated by the company.
  • Complete scope, from design to erection and commissioning.
Related Therm process Products
  • Forging Furnace / Chamber Furnace
  • Furnace for Normalizing / Annealing
  • Hardening Furnace
  • Tempering Furnace
  • Furnace Profiling
  • Industrial Burners
  • Recuperator / Economizer

Frequently Asked Questions

Q1. What is a bogie hearth furnace?
A bogie hearth furnace is a batch furnace whose hearth is a wheeled bogie on rails. The bogie rolls out for crane loading and rolls back into the chamber for heat treatment. It is used for large and heavy components.
Q2. What is a bogie hearth furnace used for?
It is used for heat treating heavy forgings, castings and fabrications. Common processes include stress relieving, annealing, normalizing, hardening and tempering, and preheating for forging.
Q3. What capacity bogie hearth furnaces has Therm process supplied?
Therm process has commissioned bogie hearth furnaces from 1 ton per batch up to 60 tons per batch. Each furnace is sized to the customer's largest load.
Q4. Is a bogie hearth furnace the same as a car bottom furnace?
Yes. "Bogie hearth furnace" and "car bottom furnace" describe the same design: a batch furnace with a movable, rail-mounted hearth.
Q5. What temperature does a bogie hearth furnace operate at?
The operating temperature depends on the heat treatment process. Stress relieving runs lower than normalizing or hardening. Therm process designs the furnace for your highest required process temperature.
Q6. What is furnace profiling and why does it matter?
Furnace profiling records the actual temperature of the charge during the cycle, using thermocouples attached directly to it. It shows whether thick sections really reach and hold the required temperature, which is often needed for quality audits and customer specifications.
Q7. What information is needed for a quotation?
Share the maximum load weight, component dimensions, material, heat treatment processes, maximum temperature, heating and cooling rates, fuel, crane capacity and plant location.

Looking for a Bogie Hearth Furnace Manufacturer in India?

Therm process can engineer a bogie hearth furnace around your heaviest components. Share your maximum batch weight, largest component dimensions, material, heat treatment processes, maximum temperature, fuel and plant location. Our engineers will propose a suitable configuration.
