BLU - FLAME Gas Burners Series 44 |
|
|
|
|
|
| |
|
 |
- Proven
Design
- Trouble
free operation.
|
|
| |
| Applications |
- Re-heat
Furnaces.
- Forge
Furnaces.
- Non
Ferrous Melting Furnaces.
- Air
Heaters , Dryers.
|
- Bell
Furnaces , Pit Furnaces.
- Klins.
- Heat
Treatment Furnaces.
- Ovens.
|
|
| |
|
| |

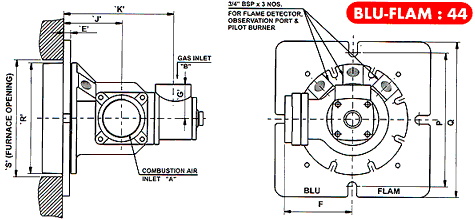

Burner
Designation |
A |
B |
E |
F |
G |
J |
K |
P |
Q |
R |
S |
44
-2 |
1 1/4"
BSP |
1"
BSP |
14 |
140 |
67 |
115 |
216 |
261 |
304 |
216 |
240 |
44
-3 |
1 1/2"
BSP |
1"
BSP |
14 |
140 |
67 |
115 |
216 |
261 |
304 |
216 |
240 |
44
-4 |
2"
BSP |
1/4"
BSP |
14 |
140 |
67 |
115 |
216 |
261 |
304 |
216 |
240 |
44
-5 |
2 1/2"
BSP |
1/2"
BSP |
14 |
140 |
67 |
115 |
216 |
261 |
304 |
216 |
240 |
44
-6 |
3"
BSP |
1/2"
BSP |
14 |
140 |
67 |
115 |
216 |
261 |
304 |
216 |
240 |
|
| |
Total
Air Capacities in Cubic Meter Per
Hour
(
Multiply by 35.28 to get CFH ). |
Burner
Designation |
44
-2 |
44
-3 |
44
-4 |
44
-5 |
44
-6 |
Air
Pressure At Burner |
|
|
|
|
|
| Combustion
Air at 625 mm (25") WG |
60 |
100 |
165 |
270 |
420 |
| Combustion
Air at 950 mm (38") WG |
80 |
125 |
210 |
335 |
520 |
|
| |
Gas
Capacities in Cubic Meter Per Hour
(Based on Natural Gas Cal. Value 1000
Btu/cu.ft. OR 8800 Kcal/cu.mtr) |
Burner
Designation |
44
-2 |
44
-3 |
44
-4 |
44
-5 |
44
-6 |
Air
Pressure At Burner |
|
|
|
|
|
| Combustion
Air at 625 mm (25") WG |
6 |
10 |
16.5 |
27 |
42 |
| Combustion
Air at 950 mm (38") WG |
8 |
12.5 |
21 |
33.5 |
52 |
|
*
For high Temp Application refer Blu
- Flam 445 Series.
* As a part of continous development
process therm - process reserves the
right to make alteration
to its products. |
| |
